Which Waveform Generator Is Right for You?
UNI-T's waveform generator catalog spans 16 models across five tiers, from the 30 MHz UTG900E for education and basic bench work up to the 600 MHz UTG9000T+ for radar IF, communications, and high-speed digital research. The choice is driven by output bandwidth first (what frequencies you need clean signals at), then by channel count (one, two, or four independent outputs), then by arbitrary waveform memory depth (how long a unique waveform can run before it repeats).
What Every UTG Generator Shares
Standard Waveforms
Sine, square, ramp, pulse, noise, DC β every model
Arbitrary Waveforms
Built-in library plus user-uploaded patterns over USB or LAN
Modulation
AM, FM, PM, ASK, FSK, PSK, PWM, sum modulation depending on model
Sweep & Burst
Linear/logarithmic sweep, gated and triggered burst
Frequency Counter
Built-in counter on every model β measure signals coming in as well as generated
Remote Control
USB and LAN with full SCPI command set on all but entry tier
Output Impedance
50 Ξ© standard, switchable to high-Z for direct device-under-test driving
Warranty
3+2 years β parts, labor, return shipping
Every generator does the standard function-generator job. You're choosing for frequency reach, channel count, and waveform sophistication.
Decision 1: Choose Your Bandwidth Tier
Output bandwidth is the headline spec. Pick the lowest tier that comfortably exceeds your maximum signal frequency, with at least 2β3Γ headroom for clean harmonics and fast edges.
Entry β UTG900E
30β60 MHz, 2 Ch
Best for: Education labs, hobbyist bench, basic embedded systems work, audio and low-RF testing. Two independent channels at the lowest price point. Models:
UTG932E (30 MHz),

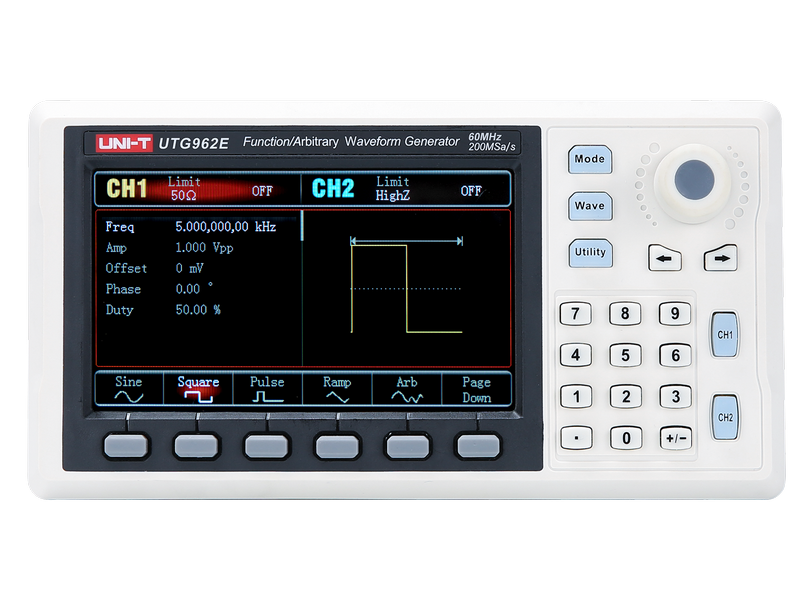

UTG962E (60 MHz).
Entry+ β UTG1022X / 1042X
25β40 MHz, 2 Ch
Best for: Bench labs that need the standard arbitrary-waveform feature set with an optional power-amplifier integration path. Models:

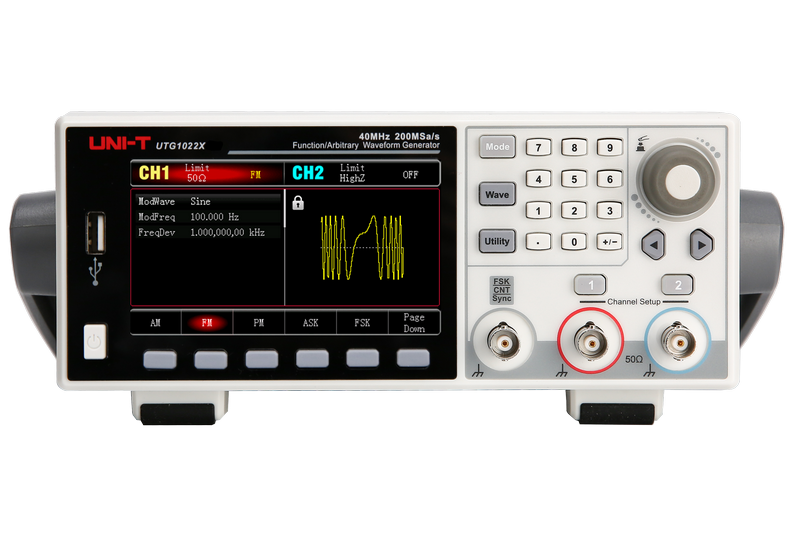

UTG1022X,
UTG1022X-PA (with power amplifier),
UTG1042X.
Mid β UTG2000X
60β120 MHz, 2 Ch
Best for: General R&D, communications prototyping, IoT and wireless development. 625 MSa/s sample rate and 64 Mpts of arbitrary memory cover most engineering work. Models:
UTG2062X (60 MHz),
UTG2082X (80 MHz),

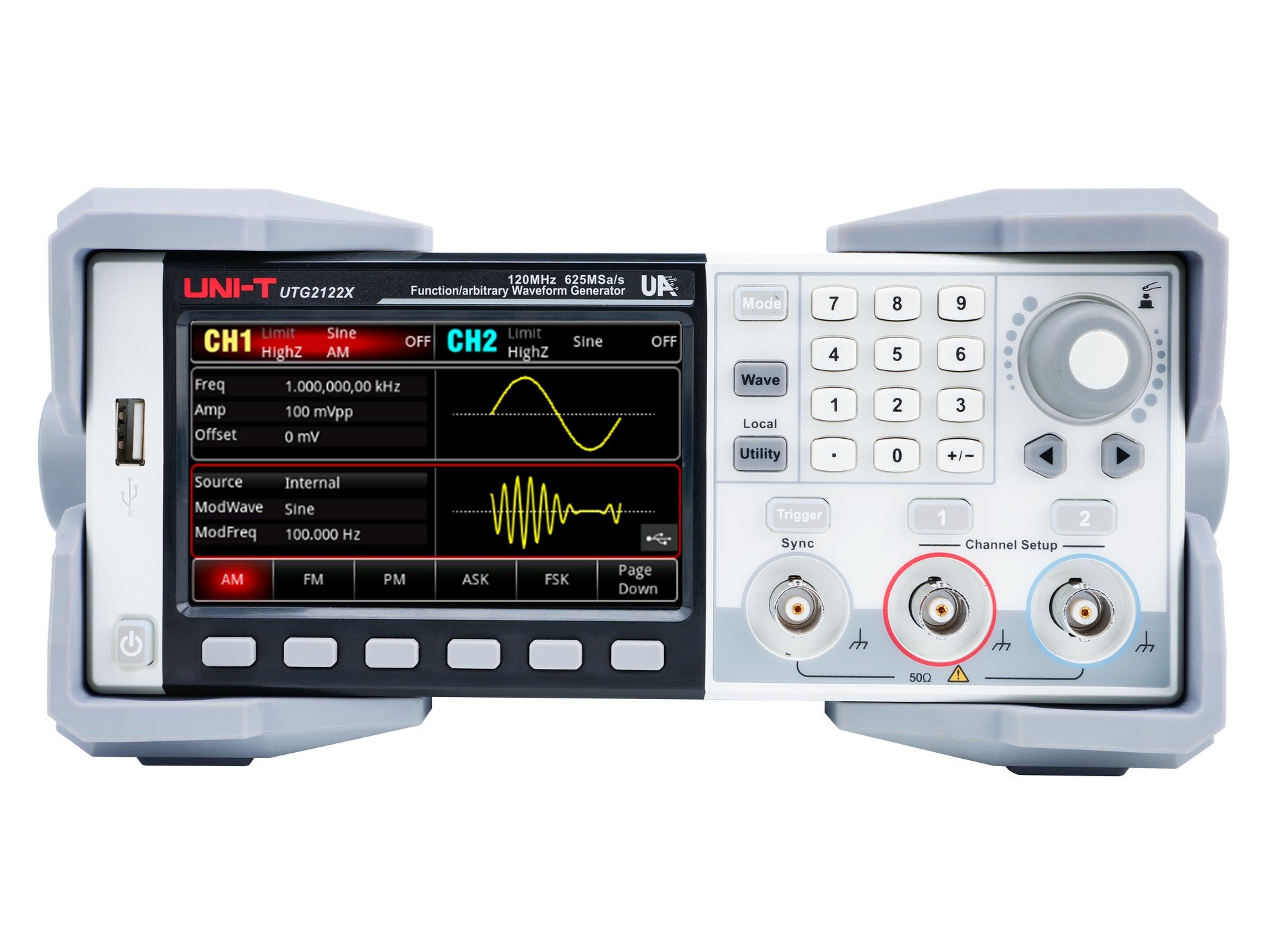

UTG2122X (120 MHz).
High β UTG4000X
100β250 MHz, 4 Ch
Best for: Multi-channel test scenarios β phased-array antenna characterization, multi-rail digital simulation, four-channel modulation testing. 2.5 GSa/s sample rate, 128 Mpts arbitrary memory. Models:
UTG4104X (100 MHz),
UTG4164X (160 MHz),

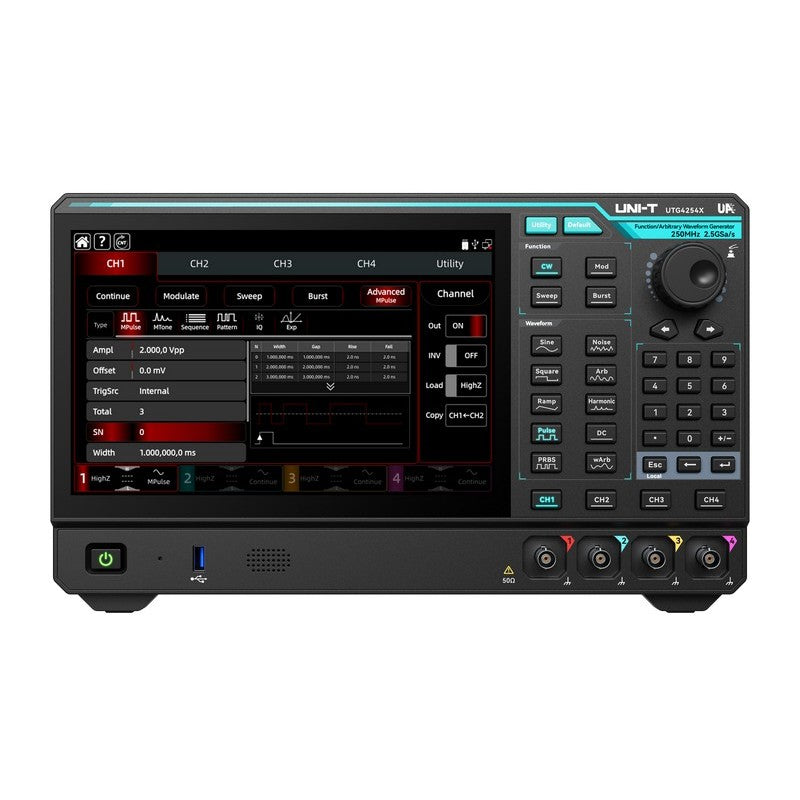

UTG4254X (250 MHz).
Flagship β UTG9000T / T+
350β600 MHz, 4 Ch
Best for: Radar IF generation, high-speed digital research, advanced communications, multi-channel beamforming validation. Plus-variant doubles arbitrary memory for longer-running patterns. Models:

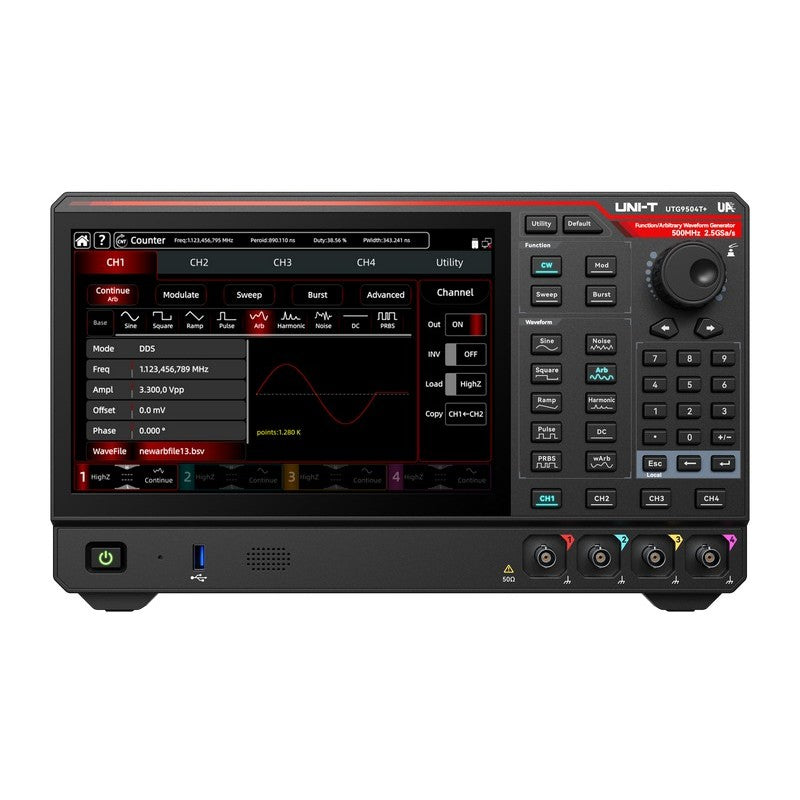

UTG9354T/
+,
UTG9504T/
+,

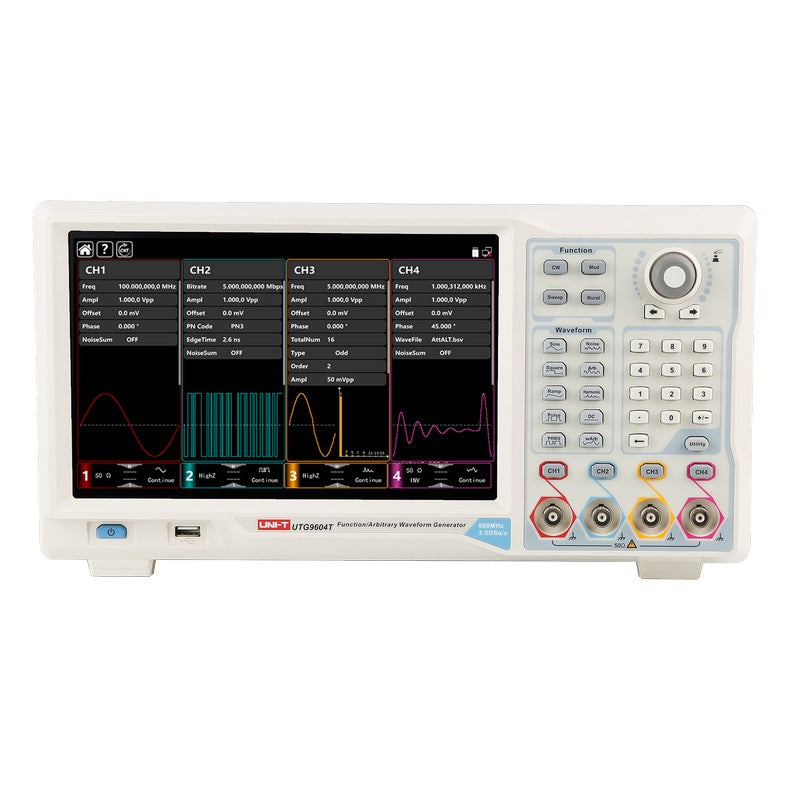

UTG9604T.
Decision 2: How Many Channels?
Channel count is the spec that often gets undervalued at purchase time and over-valued in the field. Two channels handle most bench work β generate the stimulus, then generate a sync, gate, or trigger. Four channels start to matter for differential signaling, multi-rail digital stimulus, and any test where multiple coordinated signals need precise phase relationships.
2 Channels
Entry, Entry+, and Mid tiers. Two independent outputs at the rated bandwidth. Channel-to-channel phase coherence supported via internal sync. Covers single-stimulus testing, stimulus-plus-sync, and most general engineering work.
4 Channels
High and Flagship tiers. Four independent outputs at the rated bandwidth with synchronized phase control. Required for phased-array, differential pairs at the generator level, four-rail digital stimulus, and complex multi-tone modulation testing.
Decision 3: How Deep an Arbitrary Memory?
Arbitrary waveform memory determines how long a unique, non-repeating pattern can run before it loops. Short bursts and standard modulation work with kilopoint memory. Long radar pulse trains, telemetry sequences, and protocol-level stimulus need megapoints.
| Tier |
Memory Depth |
What it gets you |
|
Entry (UTG900E, UTG1022X/1042X) |
4 kpts |
Standard arbitrary patterns, modulation, short bursts |
|
Mid (UTG2000X) |
64 Mpts |
Long pulse trains, full modulation cycles, capture-and-replay of scope-acquired waveforms |
|
High (UTG4000X) |
128 Mpts |
Extended telemetry stimulus, multi-second unique patterns at high sample rates |
|
Flagship T (UTG9000T) |
64 Mpts |
Standard flagship β full multi-channel high-speed work |
|
Flagship T+ (UTG9000T+) |
128 Mpts |
Double memory for radar pulse train libraries and long-form digital stimulus |
Complete Model Comparison
Recommended Configurations
Education / training lab
Pick: UTG932E or UTG962E β 30 or 60 MHz covers every textbook waveform and modulation exercise. Two channels for stimulus plus sync. Lowest price point per bench.
Embedded bench / general engineering
Pick: UTG2062X or UTG2082X β 60β80 MHz with deep 64 Mpts arbitrary memory handles serial protocols, modulated stimulus, captured-waveform replay. The default mid-tier bench generator.
Wireless / communications prototyping
Pick: UTG2122X or UTG4104X β 120 MHz for sub-GHz modulation, four-channel 100 MHz when you need synchronized I/Q paths or multi-tone test signals.
Phased-array / multi-channel research
Pick: UTG4254X β four channels at 250 MHz with phase-coherent outputs. The pick when channel-to-channel phase control matters as much as per-channel bandwidth.
Radar IF / high-speed digital
Pick: UTG9504T+ or UTG9604T β flagship-tier bandwidth (500β600 MHz) with deep arbitrary memory for long pulse trains. Plus-variant when your test sequences run longer than 64 Mpts can hold.
Bench amplifier driver
Pick: UTG1022X-PA β integrated power amplifier delivers higher output amplitude into low-impedance loads than a standard 50 Ξ© generator. Useful for driving piezo transducers, ultrasonic horns, or low-impedance test fixtures directly.
Why Choose UNI-T Waveform Generators?
Five tiers, one front-panel grammar
The same menu structure and SCPI command set spans 30 MHz to 600 MHz. Move up the line as the work demands without re-learning the instrument or rewriting your scripts.
Arbitrary memory that's actually deep
Mid-tier and above ship with 64 or 128 Mpts of arbitrary memory standard β not an upgrade SKU, not a license unlock. Capture a waveform from a scope, push it to the generator, replay it directly.
Modulation that covers real protocols
AM, FM, PM plus the digital modulations (ASK, FSK, PSK) plus PWM and sum modulation. Build representative stimulus for the protocols you actually work with, not just textbook test signals.
3+2 year warranty
Three-year base warranty, two additional years on registration. Parts, labor, return shipping included.
FAQ
How much bandwidth do I actually need?
Match the highest frequency component you need to generate cleanly, then add 2β3Γ headroom. For a 25 MHz sine, a 30β60 MHz tier is fine. For a 25 MHz square wave with sharp edges, you need bandwidth high enough for the 5thβ7th harmonic, so a 100+ MHz tier is appropriate. Edges are where bandwidth requirements jump.
What does sample rate determine in practice?
Sample rate sets the timing resolution of your arbitrary waveforms and the smoothness of high-frequency standard waveforms. 200 MSa/s is adequate for sub-30 MHz work. 625 MSa/s and above let the higher-tier generators reproduce fast edges and high-frequency content with low quantization noise.
When does the "T+" variant earn its premium over the "T"?
When your test sequences run longer than 64 Mpts of unique data before repeating. Radar pulse-train libraries, long telemetry frames, and extended PRBS sequences all push past 64 Mpts. If your patterns fit in 64 Mpts, the T variant is the right pick.
Do all models support remote control from Python?
Yes β every model speaks SCPI over USB; mid-tier and above add LAN. Standard VISA libraries drive them from Python, MATLAB, LabVIEW, or any test framework that supports VISA. The same scripts port across the line.
Can I upload custom waveforms?
Yes β via USB stick, USB-Host port, or LAN. Waveform editor software bundled with the generator handles point-by-point editing, captured-trace import, and mathematical waveform generation.
Pick your bandwidth, your channels, and your memory depth β the rest is the same instrument.
