DC Power Supplies

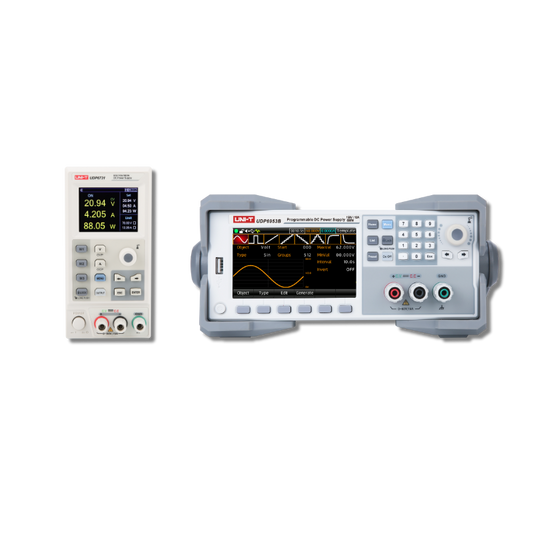

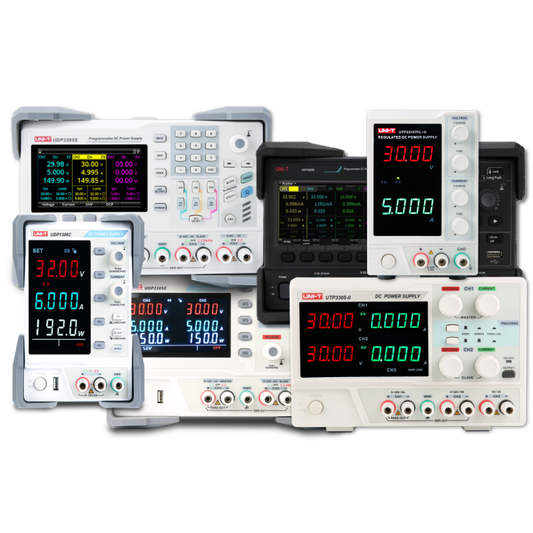

Bench DC power supplies and electronic loads provide the controlled source and sink endpoints for any electrical circuit test — from analog circuit validation through battery testing, motor characterization, and automotive bench work. The UNI-T combined catalog spans 30 SKUs across linear DC supplies (UDP1000, UDP3000, UDP3000S, UDP4000S, UTP3000), switching DC supplies (UDP6700, UDP6900), and the UTL1000S programmable DC electronic load family for cycle testing and dynamic-load characterization. Power ranges run from 90 W single-channel benchtop through high-power switching systems. SCPI-programmable models support automated test integration; manual-control UTP variants suit analog bench simplicity.
UNI-T DC Power Supply — Buyer's Guide
Linear or Switching: Which Topology Is Right for You?
Every DC power supply uses one of two fundamental topologies: linear or switching. Both deliver regulated DC. They differ in how they convert input voltage to output, and that single architectural choice drives every other tradeoff — noise, efficiency, weight, programmability, and price. UNI-T's catalog covers both because the right answer depends on the work, not the brand. This guide walks the decision; the deeper series-specific comparisons live in their own guides.
How They're Different
Linear Power Supplies
A pass element (typically a power transistor) dissipates the difference between input and output as heat. The result: extremely low noise, no switching artifacts, fast transient response — at the cost of weight, heat, and efficiency that drops as output voltage drops below the rail.
You want a linear supply when:
- You're powering noise-sensitive analog circuits — op-amp front-ends, RF receivers, audio rails, biomedical sensor electronics
- You need clean transient response without switching ripple
- Output power is modest (up to a few hundred watts) and bench space tolerates the chassis
- Education and training where students need to see textbook DC behavior
Switching Power Supplies
A high-frequency switching converter chops the input and reconstructs the regulated output through a transformer or inductor. The result: high efficiency, light weight, programmable output across a wide voltage and power range — at the cost of some switching ripple (usually well-filtered) and slightly slower transient response than a comparable linear.
You want a switching supply when:
- You need high output power (400 W and up) without a 60-pound chassis
- Programmable voltage class flexibility matters — one supply covers 0–800 V instead of one supply per voltage range
- SCPI / LAN remote control and list-mode sequencing are part of the test plan
- Constant-power architecture across the V/I envelope is the right shape for your load
- You're testing batteries, EV systems, solar inverters, or anything beyond a few hundred watts
Where Each Series Fits
| Series | Topology | Power Range | Best for |
|---|---|---|---|
| UDP1306C | Linear | up to ~150 W | Single-channel education and basic bench work |
| UDP3000C / UDP3000S | Linear | up to ~300 W | Multi-channel R&D bench, triple-output development supply |
| UDP4000S | Linear | up to ~360 W | 4-channel programmable linear bench supply |
| UTP3000 family | Linear | up to ~195 W | Education and value-pick lab bench with three independent outputs |
| UDP5000 | Switching | 400 W – 2000 W | Programmable production and validation testing, battery and EV work, automated test systems |
| UDP5800 | Switching | up to 2000 W | High-voltage (800 V) switching for EV traction and high-string PV testing |
| UDP6000 family | Switching | up to 1000 W | Compact switching benchtop with full SCPI for everyday programmable work |
The Quick Decision Tree
If your load is noise-sensitive analog — pick linear. The UDP3000C / UDP3000S / UDP4000S series cover bench R&D from one to four channels.
If you need programmable supplies with SCPI for automated test — pick switching. The UDP5000 series is the workhorse with list mode, web interface, and constant-power architecture; see the UDP5000 buyer's guide for series-internal voltage-class and power-level decisions.
If you're working above 250 V — pick switching. EV battery work, PV string testing, industrial DC bus all need the voltage range that's only practical with switching topologies. UDP5800 covers 800 V.
If you're doing education or basic bench work — pick linear. UDP1306C or the UTP3000 family cover the textbook DC behavior students need to see, with no switching artifacts.
What Every UNI-T Power Supply Shares
Where to Go From Here
Switching: programmable, high power
See: UDP5000 Buyer's Guide — the full voltage-class (40/80/160/250/800 V) and power-level (400/800/1200/2000 W) decision tree for the UDP5000 family is covered there. Includes EV, solar, and battery use-case picks.
Switching: 800 V high-voltage
See: UDP5800 collection — dedicated 800 V switching supplies for EV traction battery, high-string PV, and industrial DC bus work above 250 V.
Switching: bench & production
See: UDP6000 collection — compact switching benchtops with SCPI for everyday programmable work.
Linear: precision bench & R&D
See: UDP3000 / UDP4000 collections — multi-channel linear supplies for noise-sensitive analog and education.
Why Choose UNI-T Power Supplies?
Both topologies, one catalog
Match the supply to the work. Noise-sensitive analog gets a linear. High-power programmable gets a switching. You don't have to compromise on either choice because the catalog covers both.
Shared SCPI grammar across programmable models
UDP3000S, UDP4000S, UDP5000, UDP5800, UDP6000 all speak SCPI over USB and LAN. Scripts written for one programmable supply move to another with minimal rework.
Constant-power switching topology
UDP5000 and UDP5800 deliver rated power across most of the V/I envelope — not just at maximum voltage. The supply does the job at low-V/high-I and at high-V/low-I, not just at the corner.
3+2 year warranty
Three-year base warranty, two additional years on registration. Parts, labor, return shipping included on every model in the catalog.
FAQ
Is switching always less clean than linear?
"Less clean" overstates it. Modern switching supplies have output ripple measured in millivolts on filtered outputs — well below the noise floor of most loads. The cases where it matters are noise-sensitive analog front-ends, RF receivers, and precision instrumentation where the supply's switching frequency could couple into the measurement. For those, pick linear.
Is linear always less efficient than switching?
At full output yes, often dramatically. A linear supply driving a 5 V output from a 30 V rail wastes 83% of its input power as heat when fully loaded. A switching supply doing the same job runs at 85–95% efficiency. That's why high-power supplies are almost always switching.
Can I use a switching supply for analog work if I add filtering?
Sometimes — an LC filter or linear post-regulator after a switching supply gets you most of the cleanliness of a linear with most of the efficiency of a switching. But it's two supplies in series. For dedicated low-noise analog work, a purpose-built linear is simpler.
Why is the UDP5000 series the workhorse pick?
Five voltage classes (40/80/160/250/800 V) × four power levels (400/800/1200/2000 W) covers nearly every test scenario above the linear range. Constant-power architecture, full SCPI, list mode, LAN, web interface, and three-year base warranty make it the default switching pick. The series-internal decisions (which voltage class, which power level) are covered in the UDP5000 buyer's guide.
What's the difference between the UDP5000 and UDP5800?
Voltage class. UDP5000 spans 40 V to 250 V output. UDP5800 is the dedicated 800 V variant for EV traction batteries, high-voltage PV strings, and industrial DC bus work. Same family architecture, different output range.
Pick the topology that matches the work. The series-specific guides take it from there.
